Vapor Recovery Pipe Control Valve

Name: Vapor Recovery Pipe Control Valve
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ7506
Price: 90.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: COWELL

Sertifikasi: CNex

Nomor model: YJ7506

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Kemasan rincian: Karton Keras

Waktu pengiriman: 3-7 hari kerja

Syarat-syarat pembayaran: T/T

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                    Vapor recovery valve, Vapor gas Pipe control valve, Side Plate Valve


Tekanan Kerja:	6bar	Metode Operasi:	Pneumatik
Tekanan udara yang dibutuhkan:	4-8Bar	Koneksi:	Flens

Tekanan Kerja:	6bar
Metode Operasi:	Pneumatik
Tekanan udara yang dibutuhkan:	4-8Bar
Koneksi:	Flens

Deskripsi

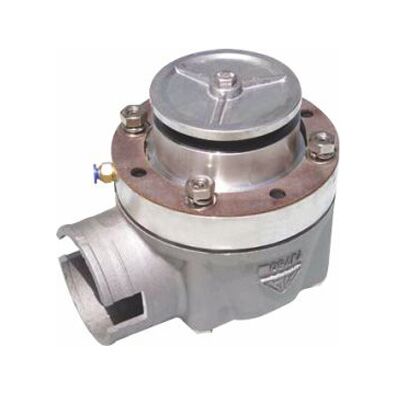

Vapor Recovery Pipe Control Valve

Description

Vapor recovery pipe control valve is also called side plate valve. It is installed on

the top of the tank truck and back of the vapor recovery pipe. While loading or unloading,

the gas goes out through vapor recovery pipe control valve, it ensures the internal and external

pressure of the tank maintain balance. The exit direction should be from back down 45 degree.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Greater spring tension, tigher seal.
Higher rated flow, lower presure drop.
Easy installation
Available with all TTMA flange
Pneumatic control on the opening and closing
Meets EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Filter: Stainless Steel

Spring: Stainless Steel

Seal: NBR

Technical Specification
Model	YJ7506
Working pressure	0.6 Mpa
Air pressure required	0.4-0.8 Mpa
Temperature range	-20~70℃
Connection mode	Flange
Operating mode	Pneumatic
Medium	Diesel, Gasoline, Kersene
