Sight Glass

Sight Glass
Sight Glass
Sight Glass

Sight Glass

Rincian produk

Tempat asal: Cina

Nama merek: COWELL

Nomor model: YJ6202,6203

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 2

Kemasan rincian: Karton Keras

Waktu pengiriman: 3-7 hari kerja

Syarat-syarat pembayaran: T/T

Dapatkan Harga Terbaik
Hubungi Sekarang

Spesifikasi

Deskripsi
Spesifikasi
Menyoroti:

sight glass

,

Aluminum sight glass

,

plastic sight glass

Bahan:
Aluminium, Plastik
Ukuran:
3" & 4"
Ketebalan:
28mm, 40mm, 50mm, 75mm
Bahan:
Aluminium, Plastik
Ukuran:
3" & 4"
Ketebalan:
28mm, 40mm, 50mm, 75mm
Deskripsi

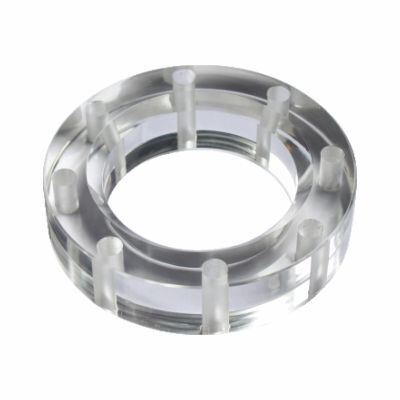

Sight Glass



Description



Sight glass flanges is installed between pipe outlet flange and API valve

to show if product is present and its color to confirm product identification.

The standard drilling is TTMA, different thickness is for your option.



Characteristics


  • Light and compact structure, easy to install and use

  • Main material is made of plastic or aluminum

  • Can check the transferring liquid

  • Flange meets TTMA standard

  • Pressure to 3000KPa

  • Max. temperature 70℃



Material


Body: Aluminum alloy

Mirror: Glass

Seal: NBR



 Technical Specification

 Model

 YJ6202A

YJ6202B

YJ6203A

YJ6203B

 Size

3"

4"

3"

4"

 Thickness

28mm/40mm

28mm/40mm

50mm

75mm

 Material

 Plastic Plastic

Aluminum

Aluminum
