API Adaptor Coupler

Name: API Adaptor Coupler
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ206, YJ206N
Price: 115.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: COWELL

Sertifikasi: CE

Nomor model: YJ206, YJ206N

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 5

Kemasan rincian: Karton Keras

Waktu pengiriman: 3-10 hari kerja

Syarat-syarat pembayaran: T/T

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                    API Adaptor Coupler, Oil tanker environmental safety adaptor, API coupling for tanker loading


Produk:	Penggandeng Adaptor API	Bahan:	Aluminium
Ukuran:	4" hingga 4", 4" hingga 3",4" hingga 2,5"	Mode koneksi:	Takik atau NPT/BSPT

Produk:	Penggandeng Adaptor API
Bahan:	Aluminium
Ukuran:	4" hingga 4", 4" hingga 3",4" hingga 2,5"
Mode koneksi:	Takik atau NPT/BSPT

Deskripsi

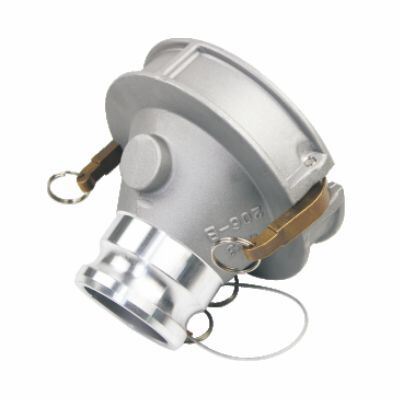

API Adaptor Coupler

Description

YJ series API adaptor coupler is the good design for API bottom adaptor to ensure the safety and quick loading and unloading.

It makes connection easier and mates with standard 4" API RP-1004 tank truck adaptors.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Cam locking operation, installed by pressing
22.5 angle downward reduce oil retention
The handle towards locking makes easier connection and more reliable sealing
Cam and free-floating eliminates friction and bending, easier to connect without grease
Meets API 1004 and standard

Material

Body: Aluminum alloy

Pin: Stainless Steel

Seal: NBR

Handle: Copper

Technical Specification
Model	YJ206N	YJ206T
Size	4” to 4”, 4” to 3” ,4” to 2.5”
Working pressure	0.6 Mpa
Temperature range	-20~70℃
Connection mode	Notch	NPT/BSPT
Operating mode	Mechanical	Mechanical
Medium	Diesel, Gasoline, Kersene
