Openable API Adaptor

Name: Openable API Adaptor
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: HYF-01, HYF-02
Price: 115.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: COWELL

Sertifikasi: CE

Nomor model: HYF-01, HYF-02

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Kemasan rincian: Karton Keras

Waktu pengiriman: 7-15 hari kerja

Syarat-syarat pembayaran: T/T

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                    Openable API Adaptor, Oil tanker cargo manifold adaptor, API adaptor for oil tankers


Produk:	Adaptor API	Ukuran:	4"
Bahan:	Paduan Aluminium	Aplikasi:	Solar, Bensin, Kersen

Produk:	Adaptor API
Ukuran:	4"
Bahan:	Paduan Aluminium
Aplikasi:	Solar, Bensin, Kersen

Deskripsi

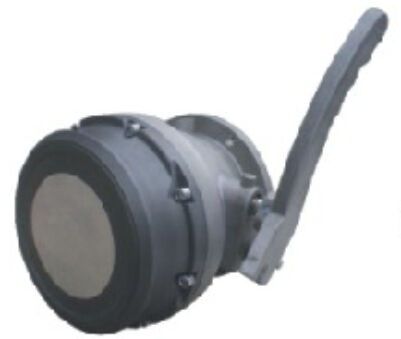

Openable API Adaptor

Description

HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,

When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Hydrodynamic design minimizes the pressure drop for high flow rate.
Light weight, die cast aluminum construction for increased payloads with strength.
Two-stage fixed aluminum handle positively indicates valve position.
Stainless steel operation shaft, cam & poppet stem for durability.
The sight glass can be check easily by operator
Top mounting for puneumatic interlock valve
According to API 1004 and EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Shaft: Stainless Steel

Spring: Stainless Steel

Bushing: Copper

Seal: NBR

Handle: Aluminum

Technical Specification
Model	HYF-01	HYF-02
Size	4"
Working pressure	0.6 Mpa
Max. flow rate	2500L/Min
Air pressure required	0.4-0.8 Mpa
Temperature range	-20~70℃
Connection mode	Flange
Operating mode	Mechanical Fork	Mechanical Rack
Medium	Diesel, Gasoline, Kersene
